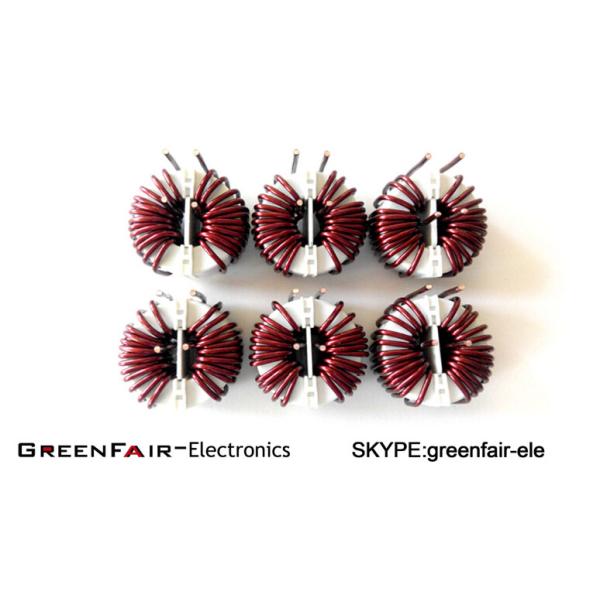

Horizontal T63 common mode choke with 4 windings and PEW Φ3.55 wire , big current loading and huge power
Feature for High Quality toroidal inductor common mode choke ROHS :
High frequency and low loss
Common mode filter
Toroidal inductor
For excellent EMI suppressor
High-frequency, low loss toroid
Low resistance
MPP, hi-flux, sendust/RF carbonyl, and iron power core
For excellent EMI suppressor
common mode choke coils
Toroid common-mode filter coils
Toroidal common-mode inductor
For SMPS application
RoHS compatible (Pb free) versions available
Good frequency characteristic
With high impedance
Dielectric strength:1500V. Fixed by terminal to do PCB assembly.
Custom Designs Available.
Application:
widely applied in various switching power suppliers and high frequency electronic equipmentNoise suppression of DC circuit for switching regulator.
DC/DC,AC/AC line noise suppression
Automotive System.
Communication System.
| WINDING PARAMETER: |
| NO. |
WINDING |
MATERIAL |
S--F |
TURNS |
REMARK |
| 1 |
N1 |
PEW Φ3.55*1P |
1--2 |
5 |
|
| 2 |
N2 |
PEW Φ3.55*1P |
4--3 |
5 |
|
| 3 |
N3 |
PEW Φ3.55*1P |
5--6 |
5 |
|
| 4 |
N4 |
PEW Φ3.55*1P |
8--7 |
5 |
|
| ELECTRICAL CHARACTERISTIC: |
| NO. |
ITEM |
MEASURE POINT |
TECHNICAL DATA |
TEST CONDITION |
| 1 |
IND |
N1,N2,N3,N4 |
400μH±30% |
10KHz 0.25V |
| MATERIAL LIST: |
| NO. |
MATERIAL NAME |
MATERIAL SPEC. |
PROVIDER |
UL·NO |
| 1 |
CORE |
T63*38*25 TS10 |
TDG OR EQUIVALENT |
|
| 2 |
WIRE |
PEWΦ3.55mm 155℃ |
DARTONG OR EQUIVALENT |
E237377 |
| 3 |
UL TUBE |
RSFR-X Φ10 BLACK 125℃ 600V |
WOER OR EQUIVALENT |
E203950 |
| 4 |
RED FIBRE |
2*35*30mm&1*35*30mm |
THE TOYO FIBRE OR EQUIVALENT |
E55656 |
| 5 |
Polyester film |
0.05*15mm |
E I DUPONT OR EQUIVALENT |
E41938 |
| 6 |
Terminal |
RNB 5.5-10 |
KAISIXING OR EQUIVALENT |
|
General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently
| OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT |
| Temperature range |
Humidity range |
Standard test conditions |
| Operating temperature* |
Storage temperature |
Operating temperature** |
Storage temperature** |
Operating temperature** |
Storage temperature** |
| ( ℃) |
( ℃) |
( % RH) |
( % RH) |
( ℃) |
( % RH) |
| -30 to +120 |
-40 to +80 |
10 to +95 |
10 to +95 |
25 ± 10 |
25 to +75 |
* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing
